Output mothod 輸出模式
|
出線式
|
BR2-N
|
BR2-P
|
|
端子式
|
BR2-NB
|
BR2-PB
|
|
Emitting element/發(fā)光源
|
Red LED 660 nm
|
|
Operating voltage/工作電壓
|
DC12~24V ± 10%
|
|
Current Consumption/消耗電流
|
45mA Max.
|
|
Load current / 負載電流
|
100mA Max.at DC24V
|
|
Output Type / 輸出模式
|
NPN L.on / D.on
|
PNP L.on / D.on
|
|
|
|
Protection circuit / 保護電路
|
Reversed polarity protection, over-current protection
|
|
Response time/反應(yīng)時間
|
on 1 ms, off 1 ms
|
|
Indicators/指示燈
|
Output indicator ：Red LED
|
|
Sensitivity adjusrment/靈敏度功能
|
3 Digitals 000-999
|
|
Insulation resistance/隔離阻抗
|
20M V min. (DC500V)
|
|
Voltage Withstandability/絕緣耐壓
|
AC500V 60Hz for 60 Sec.
|
|
Operation temperature/工作溫度
|
+10℃~+60℃
|
|
Ambient humidity/工作濕度
|
35%~85% RH
|
|
Protection degree/防水等級
|
IP64
|
|
Material/外觀材質(zhì)
|
ABS
|
|

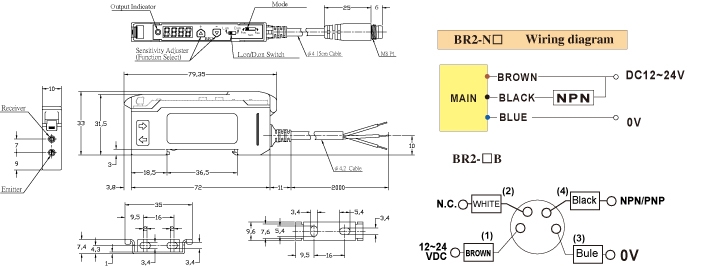

Wiring method
/ 出線方式
|
BR2-□
|
Pre-wired Ø4.2 x 2 M / 3-wires
|
|
BR2-□ B
|
M8 pigtailed type / M8 接頭15cm電線式
|
|
Weight / 重量
|
BR2-□
|
Approx. 63 g
|
|
BR2-□ B
|
Approx. 70 g
|
